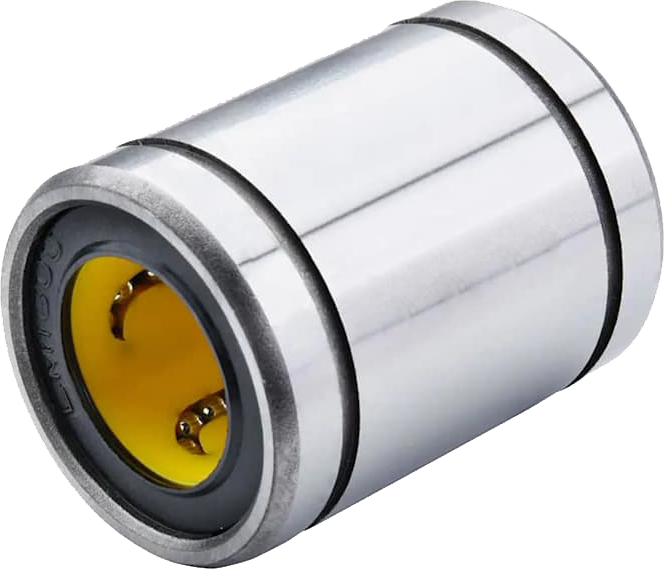

Straight Single / Double (DC-LM_UU)
▼ Check FAQ of this product (6)
Brand : Dymex
From : ₹ 13.00 / Unit
Qty :
Days to Ship : 10 to 15 Days
Total Price : ₹ 13.00
Select part number to Quote Now
Product Description
| Property | Details |
|---|---|
| Product Name | Straight Single / Double (DC-LM_UU) |
| Ball Recirculating Type | 52, Double, Single |
| Basic Load Rating: Dynamic Load (Details) (N) | 69 - 6080 |
| Basic Load Rating: Static Load (N) | 138 - 15900 |
| Eccentricity (µm) | 12, 15, 24, 25, 30, 35, 40, 45, Single |
| Inscribed Circle Dia. Tolerance (Negative Side) (mm) | -0.015 - -0.009 |
| Inscribed Circle Dia. dr (Ø) | 3 - 738.4 |
| Length | Double, Single |
| Outer Dia. D (Ø) | 7, 8, 10, 12, 15, 19, 21, 23, 28, 32, 40, 45, 52, 60, 80, Single, [Surface Treatment] Electroless Nickel Plating |
| Outer Sleeve Surface Treatment | 23, 42, 70, No Surface Treatment, [Surface Treatment] Electroless Nickel Plating |
| Overall Length L (mm) | 10, 12, 15, 19, 20, 23, 24, 28, 29, 30, 32, 35, 37, 42, 45, 55, 57, 59, 61, 64, 70, 80, 100, 112, 123, 135, 151, 192, [Surface Treatment] Electroless Nickel Plating |
