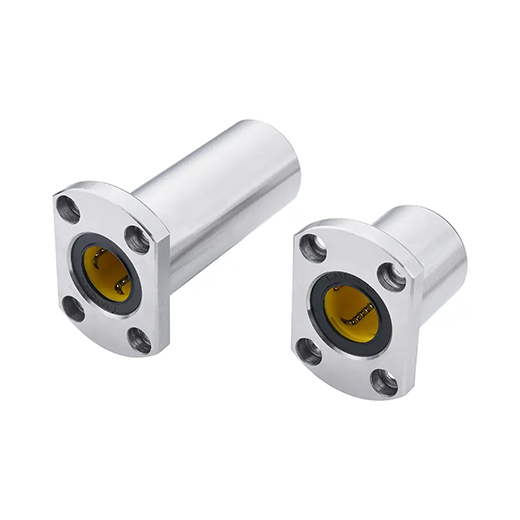

Compact Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole (DE-LBH6LUU)
▼ Check FAQ of this product (6)
Brand : Dymex
From : ₹ 208.00 / Unit
Qty :
Days to Ship : 10 to 15 Days
Total Price : ₹ 208.00
Select part number to Quote Now
Product Description
| Property | Details |
|---|---|
| Product Name | Compact Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole (DE-LBH6LUU) |
| Ball Recirculating Type | Double, Single |
| Basic Load Rating: Dynamic Load (Details) (N) | 167 - 6080 |
| Basic Load Rating: Static Load (N) | 206 - 15900 |
| Eccentricity (µm) | 20 - 45 |
| Inscribed Circle Dia. Tolerance (Negative Side) (mm) | -0.021 - -0.013 |
| Inscribed Circle Dia. dr (Ø) | 5 - 1361 |
| Length | Double, Single |
| Outer Dia. D (Ø) | 10 - 80 |
| Outer Sleeve Surface Treatment | No Surface Treatment, [Surface Treatment] Electroless Nickel Plating |
| Overall Length L (mm) | 15 - 192 |
| Style of Mounting Hole | Reverse Counterbore Hole, Standard Counterbore Hole |
